Radical Separation, part 3

Posted on May 13, 2013 by

Disclaimer: This article contains speculative and experimental techniques that are in the proof-of-concept stage. Use at your own risk and test thoroughly.

Today we’re going to delve further into the concept of virtual calculations, picking up where we left off last time, and with the assumption that readers are familiar with the material in part 1 and part 2 . We’ll look at some ways to make this technique less brittle (prone to breakage if objects are renamed), and also less opaque to DDR analysis tools such as BaseElements and Inspector. We’ll also see if the technique can be applied to auto-enter calc fields, and finally, we’ll explore some ways to make the technique easier to implement.

5-10-2013 10-41-51 AM

Demo Files: Virtual Calcs, Part 3a, Virtual Calcs, Part 3b and Virtual Calcs, Part 3c

Continue Reading →

Radical Separation, part 2

Posted on May 3, 2013 by

Disclaimer: This article contains speculative and experimental techniques that are in the proof-of-concept stage. Use at your own risk and test thoroughly.

In part 1 of this series, we defined radical separation as a separation model scenario in which the developer no longer has access to a data file once a solution had been deployed. Updates to the solution are delivered in the standard separation model manner: by swapping in a new interface file.

We explored the concept of “virtual calculations”, where certain (unstored) calculated fields in a data file derive their definitions from syntax stored as data in a special table in the interface file. The advantage of this being that calculation logic can be redefined programatically by the simple expedient of replacing the interface file.

5-2-2013 9-09 PM

In the six weeks that have gone by since I posted part 1, I have made a couple improvements to the technique, one of which which we’ll examine in today’s demo file: Virtual Calcs, Part 2

Continue Reading →

Radical Separation, part 1

Posted on March 21, 2013 by

Disclaimer: This article contains speculative and experimental techniques that are in the proof-of-concept stage. Use at your own risk and test thoroughly.

Earlier this month I had the honor and the privilege to do a presentation on the topic of Radical Separation at the PauseOnError un-conference in Portland, Oregon, which included a demo file resembling this one: virtual-calcs-part-1-v2

3-20-2013 2-54-43 PM

Before the conference I posted a pseudo-F.A.Q. which included the following…

  • Q. What’s your experience with the Separation Model?
    A. I’ve used it heavily over the last seven years, for a variety of vertical market applications, custom projects and, recently, on a vertical market FMGo app.

  • Continue Reading →

Easy Sorting of List Views, part 3

Posted on October 1, 2011 by

Update 22 Jan 2013: Demo file and screen shots have been revised to fix bugs identified by Matt Ayres and David Schwartz (see comments at the end of article).

Ever since I posted part 2 of this series, I’ve been torn between, on the one hand, wanting to move on to other topics; and on the other, the realization that I wasn’t quite done with this one yet. So, here is what I expect will be my final posting, and final demo (dynamic list sorting, v3 rev5), on this subject.

Thus far, we’ve looked at various methods to facilitate dynamic list sorting (by “dynamic” I mean that the field to be sorted is determined programatically). Most of these methods use two fields — one of them uses four — and you can see them all in part 2.

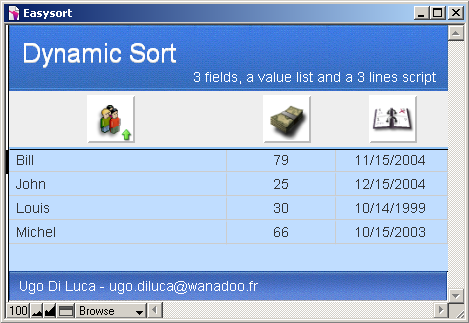

But in the back of my mind has been the knowledge that Ugo DiLuca pulled this off with a single field back in 2004 (EasySort.fp7, shared by permission of the author, and previously discussed last April in an article entitled Portal Sorting, pt 3).

Continue Reading →

Easy Sorting of List Views, part 2

Posted on September 22, 2011 by

Well, I thought I’d said everything I had to say on this subject, but yesterday afternoon I noticed a glaring omission in part 1′s demo — what happens if the user manually unsorts the found set?

The sort indicator doesn’t disappear the way a good little sort indicator should. Fortunately this is easily remedied, thanks to the Get(SortState) function. Continue Reading →

Easy Sorting of List Views, part 1

Posted on September 17, 2011 by

Earlier this year, I posted a three-part series on Portal Sorting, and part 2 focused on dynamically sorting a portal when a column heading was clicked. Well, with just a few tweaks, this technique can be applied to dynamic sorting of found sets, and of course the most likely place to employ something like this would be on a list view.

I should note that on very large found sets, sorts using this technique can be noticeably slower than traditional “hard-coded” scripted sorts. (Performance is fine with normal found set sizes.) The benefit of using this technique, is that a new field can be added to a layout and sort-enabled in about 60 seconds without touching the script itself.

Continue Reading →

Avoiding Brittleness

Posted on April 18, 2011 by

The other day I was working with an OnRecordCommit script trigger — let’s call it “Trigger Script” — and, not surprisingly, I wanted this script to run whenever a record in a certain table was committed. Except… well… not exactly always… you see, there was this one other script— let’s call it “Other Script” — which had a Commit Record step right smack in the middle, and in that particular circumstance I definitely did not want Trigger Script to execute.

Luckily, we can include a parameter when a script is triggered, so I added the highlighted script parameter to the OnRecordCommit trigger as follows:

…which evaluates as 0 (zero) when the current script is “Other Script”; otherwise it evaluates as 1. Continue Reading →

Portal Sorting, part 2

Posted on April 7, 2011 by

The other day we looked at static portal sorting, where the developer decides in advance how the portal will sort, and “hard codes” those settings into the portal. Sometimes, though, we want to provide users with an interface where they can dynamically sort a portal by clicking on column headings…

…and we’re going to look at a technique to accomplish this today. Continue Reading →

GetFieldName: New in FM 10, Improved in FM 11

Posted on December 21, 2010 by

Demo file: 2010-12-21 getfieldname – requires fm11

When FileMaker introduced the Set Field By Name script step in version 10, they wisely included a complementary function, GetFieldName, to help prevent database breakage due to field renaming.

Brittle code:

Robust code:

This is the standard use for GetFieldName, and it’s a very good use… in fact, in FM 10, that was just about all you could do with it.

I had high hopes when I first heard about this function, because the ability of a field to know its own name presents some intriguing possibilities. Unfortunately in 10, GetFieldName(Self) did not resolve properly in unstored calculations, as per the highlighted field below.

The good news is that this shortcoming was fixed in FileMaker 11.

This means that for the first time, we have the ability to modify the output of a calculated field merely by renaming the field itself. And while I offer no apologies, I do ask the reader’s indulgence for what follows. We’re exploring a “proof of concept” involving the GetFieldName function, which is not necessarily the optimal solution to this particular reporting challenge. Still, I think it’s worth exploring.

Here’s an example of how we might take advantage of this new capability. Below is a table of tour bookings. Pax is tour-speak for “number of passengers”, and currently we’re looking at some March departures for three consecutive years.

Note the three rightmost columns: pax_2009, pax_2010 and pax_2011, which exist to help produce a report comparing three years side by side. These are calculated fields, and in the Dark Ages (i.e., FileMaker 10 and earlier), we would have defined these fields along these lines:

   pax_2009:  if ( year ( date_depart ) = 2009 ; pax ; "" )
   pax_2010:  if ( year ( date_depart ) = 2010 ; pax ; "" )
   pax_2011:  if ( year ( date_depart ) = 2011 ; pax ; "" )

But now in this enlightened (post-10) era, we can define all three fields identically as:

   Let ( [
      a = Year ( date_depart ) ;
      b = GetFieldName ( Self ) ;
      c = Right ( b ; 4 )
   ] ;
      If ( a = c ; pax ; "" )
   )   //   end let

And while we’re at it, let’s make sure the storage type for these fields is “unstored”. In a nutshell, each field will compare the rightmost four characters of its name against the year of the date in date_depart, and if they’re the same, the field will show the pax value; otherwise it will show nothing.

We’ve also defined three summary fields to total these three fields, which allows us to produce a comparison report, showing totals for last year, this year, and next year side by side.

What happens next year, when we want to increment each of our pax_YYYY fields by 1? We simply rename the fields (pax_2011 to pax_2012, pax_2010 to pax_2011, and pax_2009 to pax_2010). Give that a moment to sink in: we can now update our business logic by renaming fields.

What about the column labels in the report? Can we use GetFieldName to make them update automatically? The answer is a resounding yes. And we can use “merge variables” (another new-in-FM-11 feature) to help. Here’s our report in layout mode:

The year column labels are merge variables named $$year1, $$year2 and $$year3, and we could have populated them via script, but how boring would that be? Instead we use conditional formatting — not to format the labels, but to cause the merge variables to refresh so they always indicate the correct years.

The conditional formatting formula is basically the same for all three labels, so let’s just look at how we’ve applied it to $$year3:

To reiterate: no conditional formatting has been applied. We just wanted a way to “tickle” the merge variables on the report. And there’s even a bit more trickery perhaps worth drawing attention to: the Let statement is being used to update (or create) the $$year3 variable, and that’s all the Let statement is doing, which is why the actual calculation part of the statement is empty.

As far as I’m concerned, this use of conditional formatting  is taking “cleverness” a bit too far (given that a script runs to generate this report, why not just set the variables there?), and I intend to sternly reproach myself at the earliest convenient opportunity.

But using GetFieldName to bind $$year3 to the rightmost four characters of the pax_2011 field name, in such a way that renaming the field doesn’t break things? Nothing clever about that… that’s just common sense.
